Below you will find the dimensions for all the sizes available in the curved door range of stainless steel and acrylic glass canopies

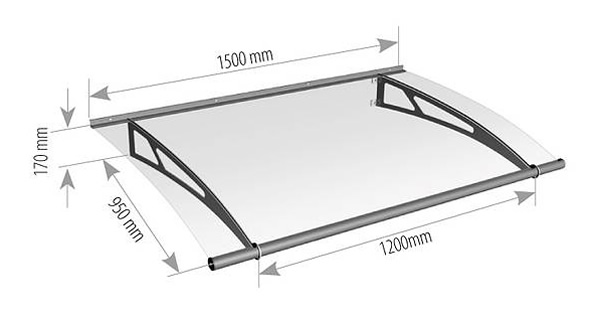

1500mm Curved Door Canopy dimensions
1500mm stainless steel and glass canopy technical drawing

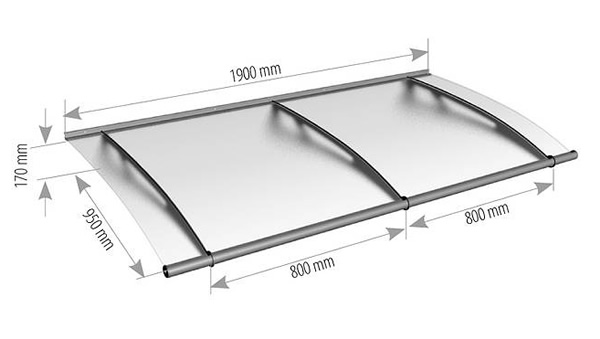

1900mm Curved Door Canopy dimensions
1900mm stainless steel and glass canopy technical drawing

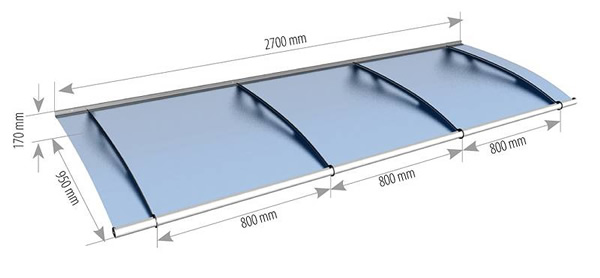

2700mm Curved Door Canopy dimensions
2700mm stainless steel and glass canopy technical drawing

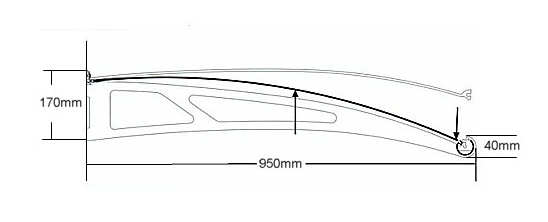

Door Curved Canopy side dimensions
